LIGHT-UP Pro

Light-up Pro can be integrated into scalable control systems designed for live performance, fixed installation or deployed individually without a computer as an elegantly simple but sophisticated standalone control solution.

With the LIGHT-UP PRO interface you have 512 DMX channels directly from the controller and also an added 4 x 512 DMX out via Art-Net. The software has an extensive effect generator for moving heads and pixel controllers. If you need more than 5 universes at your disposal, connect an interface to double your DMX outputs. With the built-in timeline you can easily program a timecoded show up to 30 minutes. By using the included software DRAW-UP you can design and visualize your stages and pre-program your new lighting effects.

Direct DMX output
Button to easily trigger the next scene
Mini USB for a reliable and fast connection

1 DMX univers direct out + 4 universes over Art-Net

Direct DMX output

Build to last

Specs:

  • Input USB 2.0 via Mini USB

  • Number of DMX Outputs: Up to 512 (PC + Stand Alone) on 3 pin XLR (XLR5 optional)

  • DMX Speed: 1 to 45 Hz, MaB, Bk

  • Stand Alone Mode: Yes, 512 channels, fine DMX channels (16 bits)

  • Internal Memory: Yes (40 Kb)

  • Memory Capacity: 2600 steps with 16 ch., 325 steps with 128 ch., 182 steps with 256 ch., h 76 steps with 512 ch.

  • Infra-red Receiver: Yes (IR remote control for triggers)

  • Infra-red Options: 10 scene selection, scene speed, general dimmer and next scene

  • Dry Contact Triggers: Yes (4 contacts port)

  • Next Scene Trigger Button: Yes

  • Power Supply Input: 5V via USB

  • High voltage Protection: Yes

  • Housing: Strong Aluminum

  • Infrared remote: No

  • Usb Mode: Yes

  • Display of signal states: USB LED

  • Power: 2W

  • CPU’s technology: 32 bits

  • Dimensions: H: 48 mm (1,89 in) / W: 70 mm (2,76 in) / D: 89 mm (3,5 in)

  • Weight: 0.16 Kgs

  • Package total weight: 0.34 Kgs

  • Colors: Blue, Black

  • IP rating: IP20

  • Compatibility: 8 and 16 bits DMX fixtures

  • Operating Temperature range: – 25 to +70 C°

  • Certifications: CE, RoHS, Fcc

PRO01

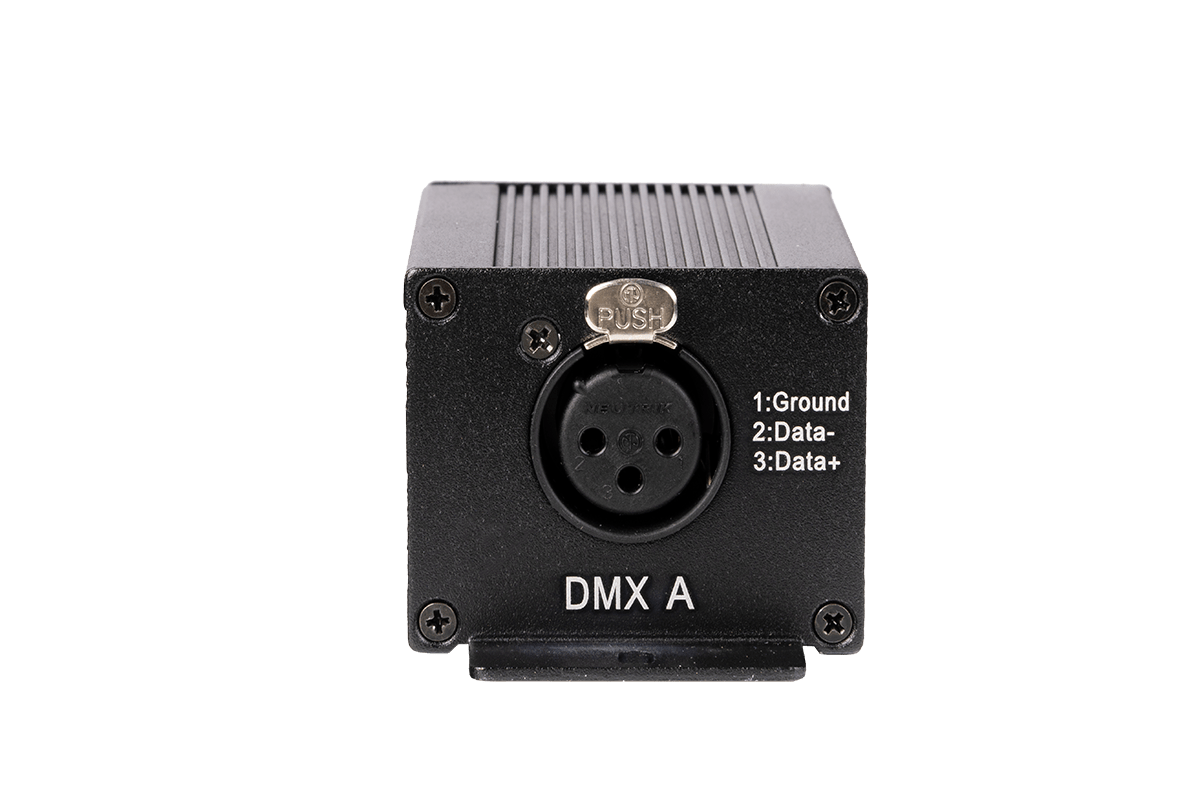

PRO02
