< Range

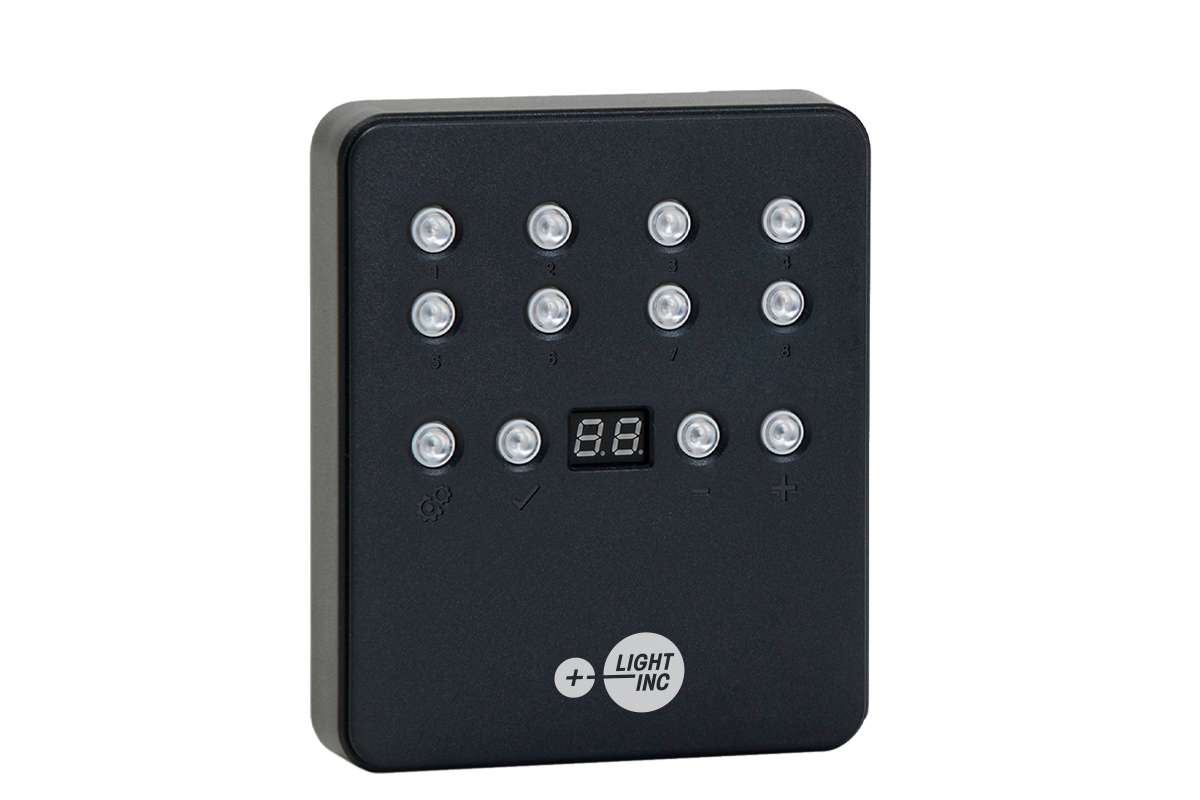

LIGHT-UP Standalone Slim

Learn about the LIGHT-UP Standalone Slim, the pinnacle of sophistication and effectiveness for controlling interior lighting. This stylish wall-mounted interface offers an accessible option for beautiful lighting installations and blends perfectly with any environment.

Enjoy the flexibility of Stand Alone mode, controlling scenes without a computer, using 512 or 1024 Stand Alone DMX channels. Your lighting automatically comes on with planned scene triggers based on time or a calendar. This interface, which is CE certified and compatible with both Windows and Mac OS X platforms, ensures a smooth and dependable lighting experience.

Accept the power of LIGHT-UP Standalone Slim, where design and functionality come together to give flawless interior lighting management for an atmosphere that is genuinely engaging.

Connections recessed into the product so that it can be mounted flush against the wall
8 buttons to easilly trigger your scenes
Mini USB for a reliable and fast connection

Thin wall mounted housing

Play up to 5 scenes simultaneously

Live and standalone operation

Specs:

  • Input USB 2.0 via Mini USB

  • Number of DMX Outputs Up to 512/1024 on 5 pins terminal screws

  • DMX Modes (512) 2×512 (Splitter, PC, Stand Alone) or 512 in/out (PC)

  • DMX Modes (1024) 2×512 ,1024 or 512 in/out (PC + Stand Alone)

  • Internal Memory Yes, 4Mb (no SD card required)

  • Memory Capacity 20000 steps with 16 ch., 6000 steps with 512 ch., 3000 steps with1024 ch.

  • External Memory SD card slot (accepts FAT format, Class 6, 8 and 10, up to 256 GB)

  • Dimensions H : 20mm(0.79in) / W : 128mm(5.04in) / D : 109mm (4.29in)

  • Net Weight (interface) 0.2 Kgs (0.44 lbs.)

  • Gross weight (package) 0.41 Kgs (0.9 lbs.)

  • Power Input 5V to 24V DC, 0.5A max on DC connectors, 5V, 0.5A via USB

  • Power / Consumption 0.3 ~ 0.5 W

  • High Voltage Protection Yes

  • Housing Black or White with 4 mounting slots, ABS Plastic

  • IP rating IP40

  • Operating environment Indoor

  • Storage Keep dry

  • Operating Temperature – 30 à +85 C°

  • Certifications CE, RoHS

  • System Compatibility Windows (7 and +), MAC OS X (10.6 and higher) and Linux (64 Bits, Debian,Redhat, Archlinux, Raspberry Pi)

STANDALONE-SLIM01
STANDALONE-SLIM03
STANDALONE-SLIM02
